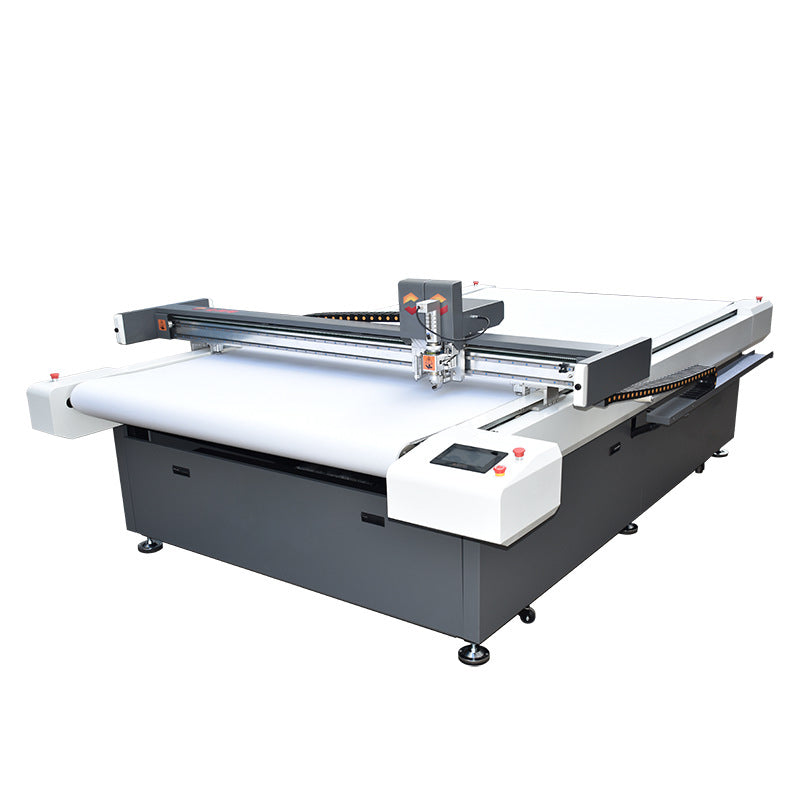

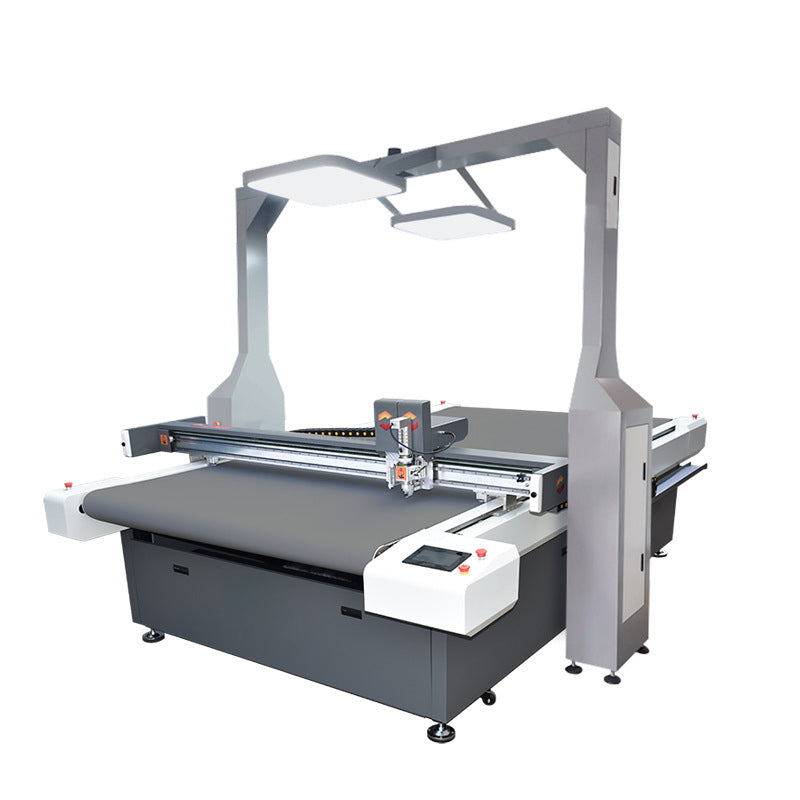

Digital printing material cutting machine is designed for precise positioning and cutting of digital printing fabrics such as canvas, vinyl and other printing materials. The advanced DSLR panoramic camera vectorization system enables precise cutting of edge contours and visual recognition of contours.

Technical Parameters

Effective cutting area: 1500*1600mm
Machine power: 7.5kw
Overall machine size: 2740*2520*1380
Cutting speed: ≤2000mm/s (cutting according to different materials)
Cutting thickness: ≤60MM
Transmission port: standard network port
Compatible software formats: PLT, DXF, AI, PDF, NC, etc.
Operation interface: touch screen
Transmission system: high-end servo motor drive, linear guide
Working voltage/power: AC/380V±10% 50HZ
Fuse specification: 6A/30A
Working environment Temperature: 0° ~ 35° Humidity: 35% ~ 80%
Site requirements: Bearing capacity 150kg~200kg/m2, reserve turnover space
