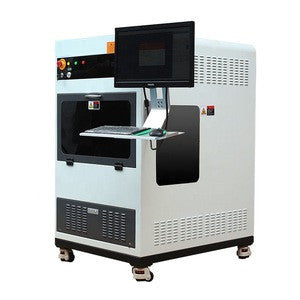

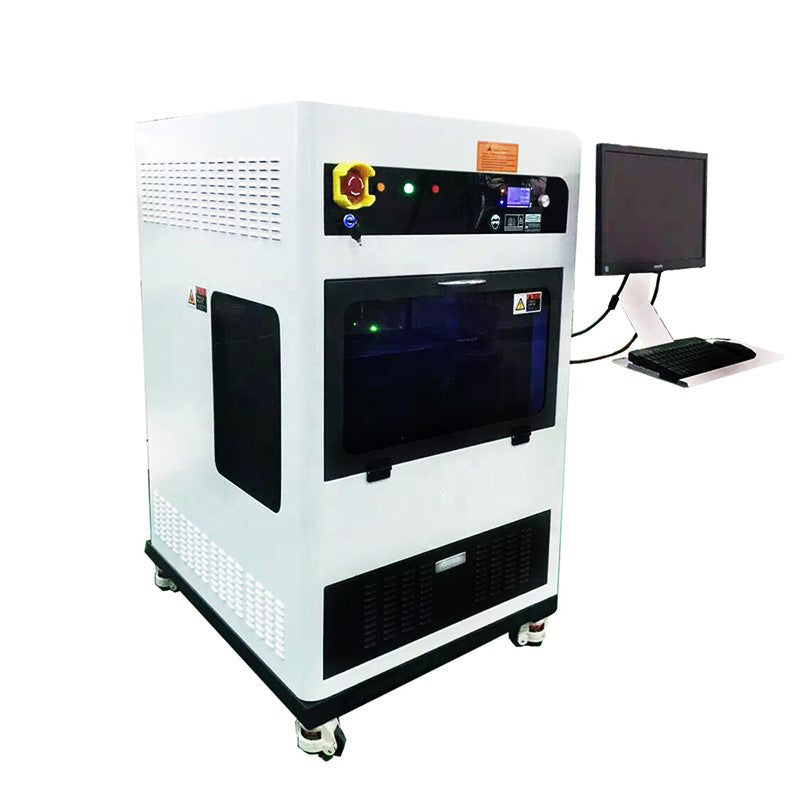

This specific 3D crystal engraving machine employs an advanced imported air cooling laser system, resulting in significantly improved engraving speed. Moreover, it achieves precision with small light points, allowing for the creation of high-profile and distinct digital images. It boasts excellent stability and easy maintenance, making it well-suited for deployment in large shopping malls, tourist resorts, and densely populated areas, where it can facilitate the production of personalized portrait engravings.
Average Life Ld |
>20000 Hours |
Max Frequency |
5000HZ |
Max Engraving Area |
400mm x 320mm x 120mm |
Focal Length(standard) |
120mm |
Focal Length(Optional) |
120mm |
Accuracy |
20μm~40μm |
Max Speed |
300000 PIONTS /Minute |
Repeat Offsite |
10~20μm |
Power |
<350W 220v/60Hz |
Net Weight |
185kgs |
Cooling |
Air cooling |
Environment |
Less dust and shock, Temperature 10-35°C, humidity < 85% |
File Format |
BMP JPG DXF OBJ WRL 3DS STL |
Applicable Mate |
Crystal, Glass, Acrylic and Other Internal Carvings and Mental Surface Carvings |
Package Size |
1060mm x1060mm x 1460mm |
Machine Size |
800mm x 900mm x 980mm |
